China Top Pivot Door Supplier Factory & Supplier

1. Industry Whitepaper: The Strategic Landscape of Pivot Door Manufacturing in China

Modern luxury architecture is increasingly defined by expansive glass facades, soaring entrance heights, and minimalist design aesthetics. At the core of this movement is the oversized pivot entry door system. Unlike conventional side-hinged doors that rely on wall-mounted butts that concentrate load stress on outer door frames, pivot door systems distribute heavy leaf weights vertically onto floor-mounted hydraulic pins. This mechanical advantage allows architects and commercial project developers to specify entrances exceeding 3 meters in width and 6 meters in height without compromising structural integrity or mechanical smooth operation.

China has established itself as the world's premier manufacturing ecosystem for high-end architectural fenestration, with Foshan serving as the epicenter of aluminum extrusion, precision surface engineering, and heavy-duty glass tempering. As a leader among China top pivot door suppliers and factories, Grandor Door Industry Co., Ltd. integrates full-stack production—from raw 6063-T6 aluminum extrusion to CNC machining, thermoweld corner crimping, and automated double-glazed assembly inside a state-of-the-art 155,000 m² smart facility.

1.1 Structural Mechanics: Offset Axis Rotation vs. Cantilever Hinges

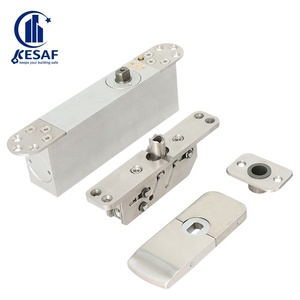

Standard architectural entry systems rely on cantilevered butt hinges, which impose severe eccentric bending moments onto vertical jamb profiles. When door panels exceed 150 kg, butt hinges experience premature pin wear, panel sagging, and perimeter seal displacement. In contrast, modern exterior pivot doors utilize a top-and-bottom rotational axis system. The bottom floor pivot transfers the panel's dead load directly down into the concrete slab or structural subfloor, leaving the top pivot hinge to handle only lateral wind loads and rotational alignment.

This load redirection allows Grandor to engineer ultra-wide luxury front entry doors using high-tensile 6063-T6 extruded aluminum profiles with wall thicknesses ranging from 2.5mm to 4.0mm. Coupled with internal steel reinforcement sleeves, these systems withstand extreme wind load pressures (up to 4500 Pa) while maintaining structural deflection limits within strict international architectural tolerances (L/175).

1.2 Thermal Break Thermodynamics (PA66 GF25 Polyamide Barriers)

Historically, oversized aluminum entry doors suffered from high thermal conductivity, creating thermal bridging that led to winter heat loss and internal surface condensation in cold climates. Modern engineering solves this through multi-chamber thermal break technology. Grandor integrates precision-engineered PA66 GF25 (25% glass fiber reinforced polyamide) thermal barrier strips that split the interior and exterior aluminum profile extrusions.

Polyamide exhibits a thermal conductivity rating of just λ = 0.3 W/m·K, compared to raw aluminum's λ = 210 W/m·K. When combined with insulated argon-filled Low-E double or triple tempered glass units (IGUs) and peripheral drop-down automatic acoustic seals, our thermal break pivot door systems achieve overall U-factors as low as 1.2 to 1.4 W/m²K (NFRC certified), making them fully compliant with strict energy conservation codes in North America, Europe, and Australia.

2. Enterprise Manufacturing Advantages: Grandor Door Industry Co., Ltd.

Navigating global procurement requires partnering with an original equipment manufacturer (OEM) and original design manufacturer (ODM) that guarantees end-to-end quality control, predictable lead times, and comprehensive international compliance. Grandor operates a fully integrated supply chain in Foshan, eliminating third-party subcontractor markups and quality variance.

2.1 Integrated Production & Procurement Protocol

To ensure total compliance with international building codes (AS2047, NFRC, CE, ASTM), Grandor executes a rigid 4-step quality assurance workflow prior to factory dispatch:

3. Technical Material Comparison & Performance Benchmarks

Selecting the optimal material matrix for luxury villa, hotel, or multi-family entrance systems requires evaluating mechanical strength, thermal performance, corrosion resistance, and total cost of ownership. Below is an engineering comparison of common pivot door structural materials manufactured at our Foshan facility:

4. Future Global Sourcing Trends in Architectural Pivot Doors (2025–2030)

As senior SEO growth analysts and architectural strategists, we monitor shifting global demand patterns across North America, Australia, the Middle East, and Europe. Buyers seeking market leadership must align their sourcing with four macro engineering trends:

4.1 Smart Access Ecosystems & Motorized Automation

The integration of smart access control into pivot doors is moving from a luxury add-on to a standard requirement. Future-ready front entry pivot doors feature internal electromagnetic multi-point latching systems paired with concealed motorized floor actuators. These systems allow touchless automatic opening via biometric facial recognition, RFID key fobs, or integration into wider KNX / Crestron smart home automation networks.

4.2 Extreme Oversized Monolithic Panels with Ultra-Slim Sightlines

Modern architectural language favors unbroken vertical sightlines. The market is shifting away from traditional segmented door panels toward monolithic single-leaf designs using 10mm+12A+10mm laminated safety glass or custom porcelain-clad composite panels. Grandor’s engineering team specializes in stabilizing large surface areas against thermal bowing (curving caused by extreme temperature differentials between interior and exterior surfaces) using dual adjustable internal anti-warping tension rods.

4.3 Enhanced Hurricane Impact & Extreme Weather Resistance

Climate change has accelerated demand for hurricane-impact rated entry doors capable of enduring airborne debris and extreme pressure cycles. Coastal markets in Florida, the Caribbean, and Australia require compliance with ASTM E1886/E1996 and AS2047 cyclonic testing standards. Our heavy-duty aluminum pivot series utilizes multi-layer PVB/SGP interlayered glass, heavy-wall reinforced extrusion chambers, and double-step EPDM gasket seals to prevent water ingress during wind-driven rainstorms up to 700 Pa.

4.4 Sustainable Low-Carbon Aluminum & EPD Certification

Institutional developers and commercial contractors are increasingly evaluated on embodied carbon. Grandor utilizes prime aluminum billets processed via hydro-electric powered smelters, reducing the carbon footprint of our aluminum profiles below 4.0 kg CO2/kg Al. Furthermore, our powder coating processes are 100% VOC-free, contributing directly to LEED v4 and BREEAM building certifications.

5. Frequently Asked Questions (B2B Procurement FAQ)

Essential guidance for international importers, architectural specifiers, door distributors, and project contractors sourcing pivot entry doors from China.
