Featured Heavy-Duty Aluminium Pivot Door Systems
Direct factory supply of modern, thermal-break, ultra-large pivot entrance doors engineered for luxury villas, commercial projects, and global distributor orders.
Modern Design Sliding Patio Door System Exterior Flush Aluminum Alloy Double Glazing
Heavy-Duty Extra Large Aluminum Pivot Door Modern Smart Lock Luxury Villa Apartment Entry Door
Largest Glass 2.5 Meters Oversized Custom Impact Rated External Electronic White Aluminum Pivot Door
High Performance Thermal Insulation Wide Access Aluminum Pivot Entry Doors for Luxury Builder Projects
YUDON DOOR Aluminum Pivot Door Puertas De Seguridad Exterior Modern Entry Door Anti Rust Hidden Hinge
YUDON DOOR Pivot Entrance Door Aluminium Entrance Doors Large Format Modern Design Matte Blue

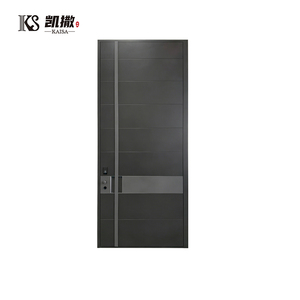

Modern Aluminium Pivot Entrance Door for Luxury Villa Front Entry Doors with Smart Lock
High Security Exterior Main Entrance Doors Customized Model Wooden & Aluminum Pivot Front Entry Door
Engineering Superiority: Technical Anatomy of Modern OEM Aluminium Pivot Doors
In high-end residential and commercial architecture, entry door specifications have evolved beyond basic passage control to statement architectural centerpieces. Custom OEM modern aluminium pivot doors represent the pinnacle of structural engineering, combining massive physical presence with effortless physical operation. Unlike standard side-hinged doors that place immense cantilever torque on vertical frames, modern pivot systems transfer panel weight vertically into the structural floor slab via offset upper and lower pivot hardware.
Information Gain Insights: Key Technical Differentiators
When sourcing custom aluminium pivot systems at factory scale, procurement managers and architects must evaluate four structural parameters that define long-term thermal integrity and dynamic safety:
1. Structural Extrusion & Alloy Selection
High-grade architectural pivot doors utilize T6-grade 6063-T5/T6 precision aluminium extrusions with frame wall thicknesses exceeding 2.0mm to 3.0mm. This profile density prevents panel deflection under extreme wind pressure (tested to ASTM E330 standards) even at heights exceeding 3.5 meters.
2. Polyamide Thermal Break Technology
To defeat thermal bridging, internal frame structures integrate continuous glass-fiber reinforced Polyamide (PA66) thermal strips. Combined with argon-filled, low-emissivity double or triple insulated tempered glazing, these systems achieve U-values low enough to conform with strict international energy codes.
3. Heavy-Duty Floor Hydraulic Closers
Our OEM pivot mechanisms employ floor-recessed or fully concealed hydraulic pivot hinges capable of supporting panel weights up to 500 kg (1,100 lbs). Features include adjustable 90-degree hold-open detents, dual-speed latching control, and zero-clearance bottom sealing.
4. Multi-Point Smart Security Integration
Modern commercial and residential procurement demands integrated access control. OEM configurations accommodate motorized multi-point lock systems compatible with biometric fingerprint sensors, RFID, keypad access, and smart home automation systems.
Grandor Manufacturing Scale & Global Procurement Support
Grandor Door Industry Co., Ltd. provides complete end-to-end control across profile extrusion, surface treatment, double-glazing tempering, and precision hardware assembly.
Fully Integrated In-House Production
Unlike assemblers who outsource critical steps, Grandor operates integrated aluminium extrusion, electrostatic powder coating, fluorocarbon (PVDF) spraying, authentic wood-grain heat transfer, and tempered glass lines under one centralized quality control regime.
Strict Quality Assurance Standards
Our engineering processes strictly follow international performance benchmarks including AS2047 / AS1288 (Australia), CE EN 14351-1 (Europe), and NFRC / ASTM standards (North America). Every custom frame undergoes strict pre-shipment mock-up inspections.
Global Logistics & Engineering Support
We provide comprehensive project CAD/BIM shop drawings, custom heavy-duty wooden crate packaging with steel strapping, anti-corrosion marine wraps, and direct logistics coordination for seamless delivery to job sites worldwide.
Future Sourcing Trends: What B2B Buyers Must Watch in 2025–2030
The global market for architectural doors and windows is experiencing rapid transformations driven by climate policy, smart building integration, and modern exterior design trends. Wholesale buyers, builders, and importers must align their procurement strategies with these core directions:
1. Demand for Extra-Large Openings & Flush Floor Transitions
Architects are pushing the boundaries of scale. Modern high-end projects increasingly demand pivot doors that span up to 3 meters in width and 4 to 5 meters in height. Additionally, zero-barrier threshold transitions—where the floor track is mounted completely flush with indoor/outdoor tile levels while maintaining water resistance—are becoming standard in luxury specifications.
2. Integration of Biometric & Hidden Motorized Hardware
Manual keyways are rapidly yielding to concealed electronic latching, facial recognition scanners, and invisible electromagnetic locks integrated directly inside the vertical stile of the aluminium panel. OEMs that offer pre-wired internal wire-ways and universal mortise prep cutouts deliver significant value to overseas contractors.
3. Carbon Neutrality & Ultra-Low U-Value Standards
With strict carbon legislation implemented across North America, Europe, and Australia, aluminium pivot entry doors must feature sophisticated multi-cavity thermal break extrusions, aerogel-filled insulation layers, and warm-edge spacer glass units to achieve net-zero energy compliance without compromising glass surface area.
4. Hybrid Material Aesthetics (Aluminium + Sintered Stone/Wood)
While the structural core remains high-tensile aluminium alloy for weatherproofing and structural rigidity, exterior panel faces are increasingly customized with sintered stone plates, ceramic slabs, anodized copper accents, and authentic timber cladding to deliver unique architectural identities.
Frequently Asked Procurement Questions (FAQ)
Essential technical and commercial guidance for purchasing custom OEM aluminium pivot doors direct from China.
What technical information is required to receive an accurate OEM quotation?
To provide a detailed structural quote and shop drawings, we require: 1) Structural rough opening dimensions (Width x Height x Frame Depth); 2) Structural drawing elevation or design layout; 3) Preferred glass specification (e.g., 6mm+12Ar+6mm Low-E Tempered); 4) Desired frame powder coating finish/color (RAL code); 5) Targeted performance metrics (such as U-value, hurricane wind load ratings); and 6) Destination seaport for freight estimation.
How do pivot entry doors handle wind load and water infiltration compared to standard doors?
Pivot doors utilize heavy-duty EPDM weather-stripping gaskets alongside drop-down automatic bottom seals that engage firmly against the floor sub-sill when the door closes. Combined with multi-point locking pins top and bottom, modern engineered aluminium pivot systems meet rigorous air permeability and water resistance standards under high wind pressures.
What is the advantage of sourcing thermal break aluminium over traditional solid wood or steel doors?
Aluminium does not warp, rot, swell, or crack when exposed to extreme moisture, humidity, or sunlight—issues that plague solid wood doors. Compared to steel, thermal-break aluminium is significantly lighter, highly resistant to coastal salt-spray corrosion, requires virtually zero surface maintenance, and provides superior energy efficiency via polyamide thermal breaks.
Can Grandor manufacture custom sizes, colors, and hardware branding for bulk project orders?
Yes. As a direct manufacturer operating a 155,000 m² factory, 100% of our production is customizable. We accommodate client-specified hardware brands (e.g., Dormakaba, Hoppe, Siegenia, or custom in-house hardware), custom RAL surface powder coatings, anodized textures, wood-grain transfers, and exact dimension tailoring according to architect plans.
What packaging protection is used to prevent freight damage during container transport?
All finished pivot panels and pre-assembled frames are wrapped in protective adhesive film, fitted with heavy-duty corner guards, encased in multi-layer pearl cotton foam, and sealed inside fully enclosed, fumigated IPPC plywood crates with internal shock absorption blocks.
Ready to Engineer Your Custom Architectural Entrance?
Contact our senior structural engineers and B2B export team today to receive CAD shop drawings, factory-direct pricing, and technical project consultation.
